Sonnenschein
dryfit
A500 series
The
universal series equally suitable for high discharge UPS applications.
Superior
cycling performance and parallel standby operation.
Case size is
equivalent throughout the series for A200 replacement .
Permissable
Pressure for A200 and A500
Maximum pressure:4000 hPa-equivalent to a water depth of approx 30m. Minimum Pressure
30hPa . equivalent to a height of 30000m
Max pressure increase and decrease: p/t=150mbars/s (1000 hPa are equivalent to
1000mbar / 1m- 3.28ft) |

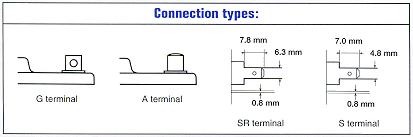

SR =
Flat spade contact for 6.3mm Faston sockets
S = Flat spade contact for 4.8mm Faston sockets
K= silver plated rivet
U= silver plated 6mm Flat contact.
G= Flag with matching S/S screw/nut 5 or 6mm
A=tapered automotive post - DIN 72311 |
Assembly Torque
G = 5mm - 5Nm;
G = 6mm - 6Nm;
A = 8Nm + dependent on adaptors metal type
&A500.pdf and
pdf. graph
on
Charging and temperature
Interacter Chargers are linked here |
| |
|
|
Type
(Click for drawing) |
Type
(click for
photo) |
Nom,
volt |
Nom.
Cap:
(C20) to 1.75vpc |
Discharge
current
(I20)mA |
Max.
load *)
appr. A |
Max. current
5 sec.*)
appr. A |
Weight
appr. kg |
Max.
length
in mm |
Max.
width in mm |
Max.
height
terminals |
Connection
type |
|
795502 |
A502 /10
S |
2 |
10.0 |
500 |
80 |
300 |
0.7 |
52.9 |
50.5 |
98.4 |
Faston
terminal 4,8 |
|
795302 |
A504
/3.5 S |
4 |
3.5 |
175 |
60 |
300 |
0.5 |
90.5 |
34.5 |
64.4 |
Faston
terminal 4,8 |
|
795182 |
A506
/1.2 S |
6 |
1.2 |
60 |
40 |
240 |
0.3 |
97.3 |
25.5 |
54.9 |
Faston
terminal 4.8 |
|
795312 |
A506
/3.5 S |
6 |
3.5 |
175 |
60 |
300 |
0.7 |
134.5 |
34.8 |
64.4 |
Faston
terminal 4,8 |
795390
795391 |
A506 /4.2 K
A506/4.2 S |
6
6 |
4.2
4.2 |
210 |
60 |
300 |
0.9 |
62.3 |
52.0 |
98.0
101.9 |
Silver Plate Rivet
Faston terminal 4.8 |
|
785465 |
A506
/6.5 S |
6 |
6.5 |
325 |
80 |
300 |
1.3 |
152.0 |
34.5 |
98.4 |
Faston
terminal 4,8 |
|
795523 |
A506 /10
S |
6 |
10.0 |
500 |
80 |
300 |
2.1 |
152.0 |
50.5 |
98.4 |
Faston
terminal 4.8 |
|
795322 |
A508
/3.5 S |
8 |
3.5 |
175 |
60 |
300 |
1.0 |
178.5 |
34.1 |
64.4 |
Faston
terminal 4,8 |
|
795185 |
A512
/1.2 S |
12 |
1.2 |
60 |
40 |
240 |
0.7 |
97.5 |
49.5 |
54.9 |
Faston
terminal 4,8 |
|
795202 |
A512
/2.0 S |
12 |
2.0 |
100 |
40 |
240 |
1.0 |
178.5 |
34.1 |
64.4 |
Faston
terminal 4.8 |
|
795315 |
A512
/3.5 S |
12 |
3.5 |
175 |
60 |
300 |
1.5 |
134.0 |
66.8 |
64.4 |
Faston
terminal 4,8 |
|
795432 |
A512
/6.5 S |
12 |
6.5 |
325 |
80 |
300 |
2.6 |
152.0 |
65.5 |
98.4 |
Faston
terminal 4.8 |
|
795436 |
A512
/6.5 SR |
12 |
6.5 |
325 |
80 |
300 |
2.6 |
152.0 |
65.5 |
98.4 |
Faston
terminal 6,3 |
|
795525 |
A 512
/10 S |
12 |
10.0 |
500 |
80 |
300 |
4.1 |
152.0 |
98.0 |
98.4 |
Faston
terminal 4.8 |
|
795530 |
A 512
/10 SR |
12 |
10.0 |
500 |
80 |
300 |
4.1 |
152.0 |
98.0 |
98.4 |
Faston
terminal 6,3 |
|
795565 |
A512 /16
G5 |
12 |
16.0 |
800 |
200 |
700 |
6.8 |
181.0 |
76.0 |
167.0 |
Screw 5 |
|
795560 |
A512 /16
SR |
12 |
16.0 |
800 |
100 |
300 |
6.7 |
181.0 |
76.0 |
156.4 |
Faston
terminal 6.3 |
|
895615 |
A512 /25
G5 |
12 |
25.0 |
1250 |
200 |
800 |
9.6 |
176.0 |
167.0 |
126.0 |
Screw 5 |
|
895625 |
A512 /30
G6 |
12 |
30.0 |
1500 |
400 |
1500 |
11.7 |
197.0 |
132.0 |
184.0 |
Screw 6 |
|
895632 |
A512 /40
G6 |
12 |
40.0 |
2000 |
400 |
1500 |
14.8 |
210.0 |
175.0 |
175.0 |
Screw 6 |
|
895630 |
A512 /40
A |
12 |
40.0 |
2000 |
400 |
1500 |
14.8 |
210.0 |
175.0 |
175.0 |
A DIN
72311 |
|
895660 |
A512 /55
A |
12 |
55.0 |
2750 |
400 |
1500 |
19.0 |
261.0 |
135.0 |
230.0 |
A DIN
72311 |
|
895664 |
A512 /60
A |
12 |
60.0 |
3000 |
400 |
1500 |
21.8 |
306.0 |
175.0 |
190.0 |
A DIN
72311 |
|
895668 |
A512 /65
G6 |
12 |
65.0 |
3250 |
440 |
1500 |
25.0 |
381.0 |
175.0 |
190.0 |
Screw 6 |
|
895666 |
A512 /65
A |
12 |
65.0 |
3250 |
440 |
1500 |
25.0 |
381.0 |
175.0 |
190.0 |
A DIN
72311 |
|
895722 |
A512 /85
A |
12 |
85.0 |
4250 |
600 |
2600 |
33.0 |
330.0 |
171.0 |
235.0 |
A DIN
72311 |
|
895750 |
A512
/115 A |
12 |
115.0 |
5750 |
770 |
2600 |
40.3 |
284.0 |
267.0 |
230.0 |
A DIN
72311 |
|
895900 |
A512/200A |
12 |
200 |
10,000 |
770 |
2600 |
70 |
518 |
291 |
216 |
A DIN 72311 |
*) Only with
appropriate counter contacts. For installation, storage, transport
or environmental regulations
Pressure
Terminals and Contacts
Permissable
Pressure for A200 and A500
Maximum pressure:4000 hPa-equivalent to a water depth of approx 30m. Minimum Pressure
30hPa . equivalent to a height of 30000m
Max pressure increase and decrease: p/t=150mbars/s (1000 hPa are equivalent to
1000mbar / 1m- 3.28ft) |
SR =
Flat spade contact for 6.3mm Faston sockets
S = Flat spade contact for 4.8mm Faston sockets
K= silver plated rivet
U= silver plated 6mm Flat contact.
G= Flag with matching S/S screw/nut 5 or 6mm
A=tapered automotive post - DIN 72311 |
Assembly Torque
G = 5mm - 5Nm;
G = 6mm - 6Nm;
A = 8Nm + dependent on adaptors metal type
&A500.pdf and
pdf. graph
on
Charging and temperature
Interacter Chargers are linked here |
